FT3, FT3.5 and FT5 are the three specifications of the FIA's one standard for safety fuel bladders: FT3-1999, FT3.5-1999 and FT5-1999. Each step up demands a stronger bladder material. Minimum tear strength goes from 0.25 kN for FT3 to 0.89 kN for FT3.5 and 1.56 kN for FT5. Which one you need is set by your championship's rules. At VMEP we supply Fuel Safe's FIA FT3 cells.
What the three specifications are
The FIA has one standard for safety fuel bladders, written as three specifications. Appendix J, Article 253.14 of the International Sporting Code says only these three are accepted, and bladders approved to them are listed in FIA Technical List No. 1. The full test specification is available from the FIA on request.
How they differ: the FIA test minimums
All three are tested the same way. What changes is the minimum the bladder material has to reach:
| Test | FT3-1999 | FT3.5-1999 | FT5-1999 |
|---|---|---|---|
| Tensile strength, wet and dry | 2.00 kN | 4.45 kN | 8.90 kN |
| Seam strength, wet and dry | 2.00 kN | 4.45 kN | 8.90 kN |
| Puncture strength | 0.78 kN | 0.89 kN | 1.78 kN |
| Tear strength | 0.25 kN | 0.89 kN | 1.56 kN |
Wet samples are tested after soaking in a test fuel of 60% iso-octane and 40% toluene for at least 72 hours. FT3.5 more than triples FT3's tear strength; FT5 roughly doubles FT3.5 on tensile, seam and puncture strength.
Which one do you need?
The one your rules name. For FIA Group N and Group A cars, Appendix J requires an FT3-1999, FT3.5-1999 or FT5-1999 safety tank and accepts any of the three; other groups follow their own technical regulations. In UK club and national racing, check the Motorsport UK Yearbook and your championship's regulations. Where a championship names one specification, check whether it is written as a minimum before you buy a different one.
How long an FIA bladder stays valid
No bladder may be used more than five years after its date of manufacture, unless the manufacturer inspects and recertifies it for up to two more years. Seven years is the limit.
Appendix J also says each tank must be marked with:
- the name of the FIA standard
- the FIA homologation number
- the manufacturer's name
- the serial number
- the date its validity ends
The tank's protection needs a leak-proof cover, removable only with tools, so a scrutineer can check that date. On Fuel Safe cells it is a "not valid after" date on a hologram label on the bladder, and Fuel Safe only recertifies within 60 days of that date, at its factory in Oregon.
Foam and fuel
Appendix J recommends safety foam in all three specifications. Fuel Safe says the foam must come out of its moulded bladders for alcohol fuels, that ethanol blends can shorten the foam's life, and that foam should be checked every year and replaced if it turns brittle.
Fuel Safe cells we supply
Fuel Safe's FIA certified lines are FT3, so if your rules need FT3.5 or FT5, talk to us before you order.
- Core range, FIA FT3, 5 to 32 US gallons, from £735 ex VAT

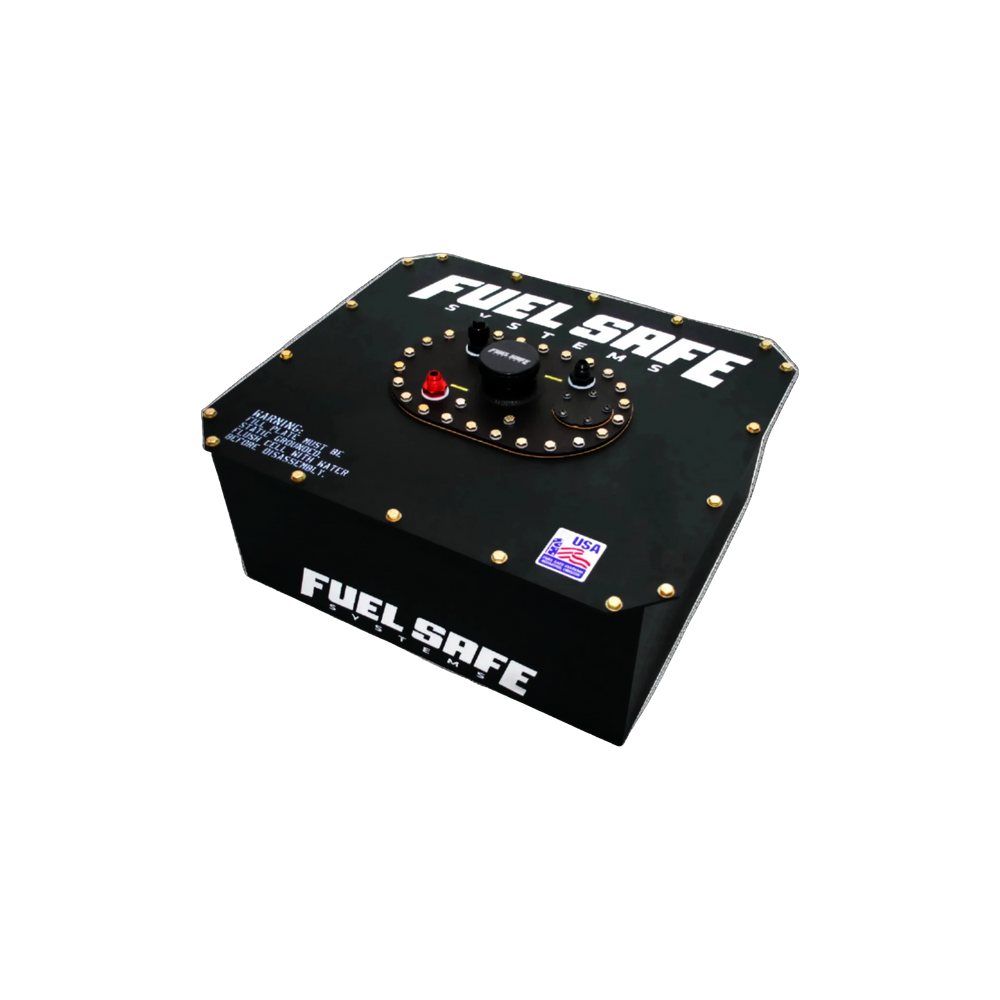

- Pro Cell complete, FIA FT3 bladder in a steel or aluminium can, from £1,295
- Formula wedge cells for BT29, Formula Ford, Van Diemen and Formula Vee, FIA FT3, from £1,365
- Club Sport Race Safe, no FIA certification, from £715
What to check before ordering
- The championship, the class and the specification its rules require.
- The volume you need and the space in the car, measured inside any existing can.
- Filler position, and the pickup, return and vent sizes.
- The fuel, including any ethanol or alcohol content.
- Bladder only, or a complete cell with can.
- For an existing cell, the validity date on its label.
View Fuel Safe fuel cells or send us your championship, car and tank size and we'll point you to the right cell.
